【10月27日Version2対応】Pythonで活性化関数Swishを書く
以下の記事の続きです。
upura.hatenablog.com

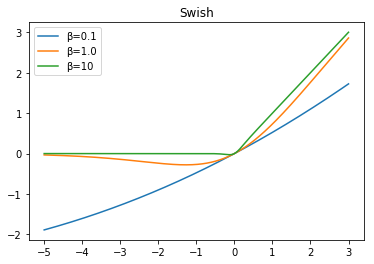

10月27日にVersion2が公開されていたので、ブログも対応して修正します。Figure4に当たります。
#!/usr/bin/env python3 # -*- coding: utf-8 -*- import numpy as np import matplotlib.pyplot as plt beta = [0.1, 1.0, 10] def sigmoid(x): return 1.0 / (1.0 + np.exp(-x)) def swish(beta, x): return x * sigmoid(beta * x) n = 1000 x = np.linspace(-5, 3, n) y = [[] for i in range(len(beta))] plt.title("Swish") for i in range(len(beta)): y[i] = swish(beta[i], x) plt.plot(x, y[i], label = "β=" + str(beta[i])) plt.legend(loc="upper left") plt.show()
